1.Free samples, NO MOQ required
2.Hight temperature resistant up to 385 degree
3.Less distortion ,Superior dimensional stability
4. Fiber Glass Reinforced material for wave solder pallet
- Product Detail
- Inquiry
About Wave solder pallet material with resistant high temperature and competitive price
|
Trade names: |
Fiber Glass Cloth Reinforced Laminated Sheet /Alternative Risholite Sheet |
|
Available Type : |
Sheet |
|
Color: |
Black, ect. |
|
Sheets Thickness: |
5,6,8mm;other can be customized |
|
Size: |
1020mm x 1220mm;1220mmx2440mm |
Weight=length(m) x width(m) x thickness(mm) x Density(2.1g/cm3)
( eg. Weight of a sheet 1220mm x 1020mm x 6mm=1.22x1.02x6x2.1=15.68kg)
Fiber Glass Cloth Reinforced Laminated Sheet is made from reinforced epoxy resin and fiberglass cloth laminated. With the superior prosperity of no itch skin and no fiber yarn, it is excellent raw material for solder pallets.It is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of 260°C (max. working temperature below 385°C 10~20sec).
I.Advantages:
High Temperature alternative Risholite Materials recognized worldwide and appreciated for their high temperature resistance, excellent machinability, chemical resistance, static dissipative properties and are sensor detectable..
II.Key Features:
-
Superior mechanical strength allows thin wall processing.
-
Excellent in Drilling/Milling/Routing workability
-
With excellent anti-static property, it allows to protect electronic components
-
Superior anti-static properties, flatness and excellent resistant-drugs for Electronic Cleaner
-
Water Absorption is lower than other materials.
-
Glass/Epoxy laminates of isopropyl alcohol (IPA) resistance is better, hard left in the material, reducing the heat generated due to isopropyl alcohol (IPA) on the impact of the PCBA.
-
No glitches and fiber yarn in the machining process so as to save working time.
-
With glass fabric cloth structure, it can be processed to a very fine thin-walled, and impact-resistant
III.Applications:
- Wave solder pallet and SMT carriers
- Electronic components automatic cartridge
- Solder paste screen printing
IV.Comparison between Alternative Durostone and Ricocel
1.Anti-static resistance value
Alternative Ricocel |
Alternative Durostone |
| 10^6~10^9 | 10^5~10^9 |
From the figure below, the 24 hour, 280°C continuous heating proves shows that ricocel has less deformation, material size :3x500x500mm
3. Thin wall tooling yielding rate
Alternative Ricocel |
Alternative Durostone |
| 99.48% | 96.53% |
4. Tool wear
With the same tooling conditions, alternative Ricocel can reduce more than 30% of tool wear

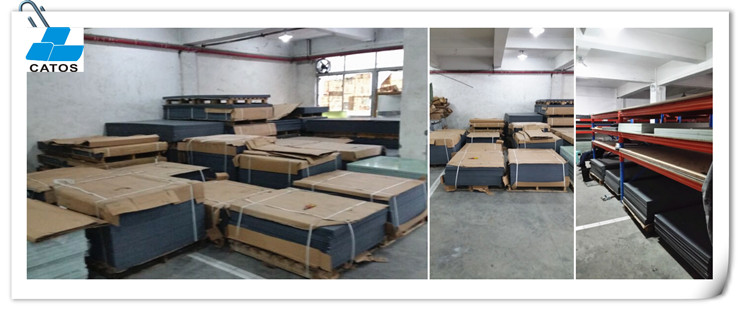

V. Packing & Delivery
1. PE protective film package;
2. Paper carton and water-proof cloth
3. Pallet and Iron straps position.
4. Weight of a pallet within 300KG .
5.Also we can depends on the requirment of customers
VI.Fabricating Process of High Temperature Resistance Durostone Sheet
Samples is available to you for free,your inquiry is welcome!
Meanwhile,Processing Guideline and Material Specification is available to you!
