Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#3NEW(a set of four items)
Usage: Position,Locked  and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard

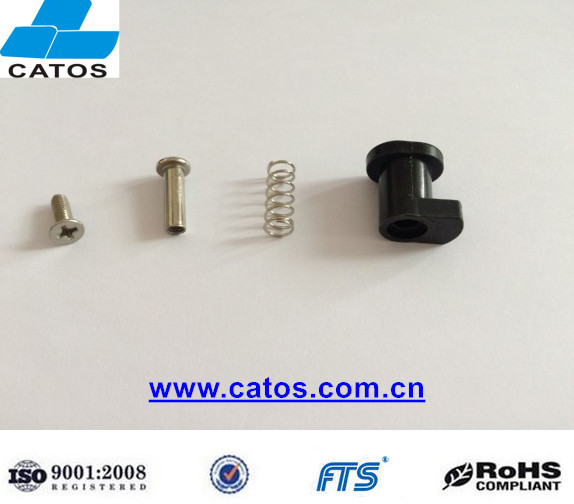

Product Parts: A set of 4 parts

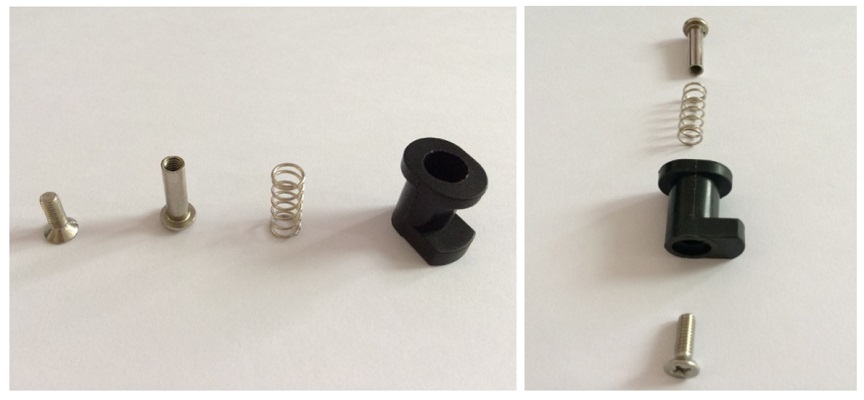

Included items of a set: a screw, a spring ,a sleeve and a plastic part
Type: Double Side Hold downs
Application: Wave solder pallet accessories
Weight of a set: 7g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report

I. Features

1)Designed specifically for use in wave solder operations

2)Mostly made from molded plastic part, spring, screws and sleeve.

3)Working temperature: 200degree, max 280degree (10~20s).

4)The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent    solder tin.



II. Function and Application

 Used to be positioned PCB substrate in wave solder pallets, fixtures and stencils to protect PCB substrate from floating and lifting.

III.Structure

MATERIAL :	High temperature polymer
TEMPERATURE RATING :	(>200° C)
HARDWARE :	Fixing pre-assembled with, Sleeve, Carbon Steel Spring & M4screw. M4 Countersunk screw supplied for attaching fixing to carrier. Bottom Screw















IV.Service:



1).Technical Drawing of  #3NEW  holddowns is available.

2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.



V.Package Process:



1).500pcs as a bag, with packed PE bag

2).Then put into 400mm x 300mm x 300mm paper carton

3).Finally,used PE protective film packed.

Warm Notes:clients'suggestion is welcomed.
