Model: CATOS-HD-#9
1.Free samples,Technical Drawing available.
2.Hight temperature resistant.
3.Sold pallet hold down
4.Position PCB substrate to avoid from floating
- Product Detail
- Inquiry
#9 Hold down clamps for solder pallet and SMT fixture in PCB Assembly with competitive price
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#9
Usage: Postion and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 4 parts

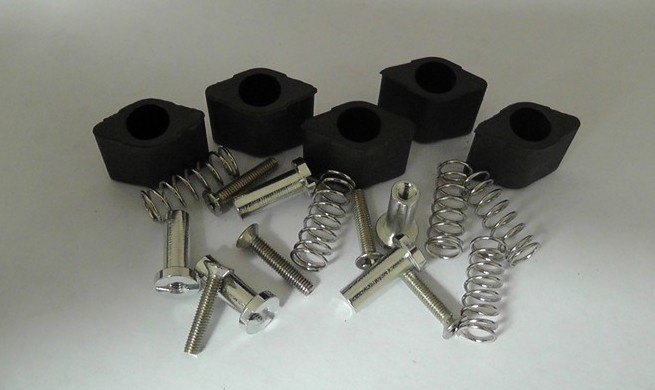

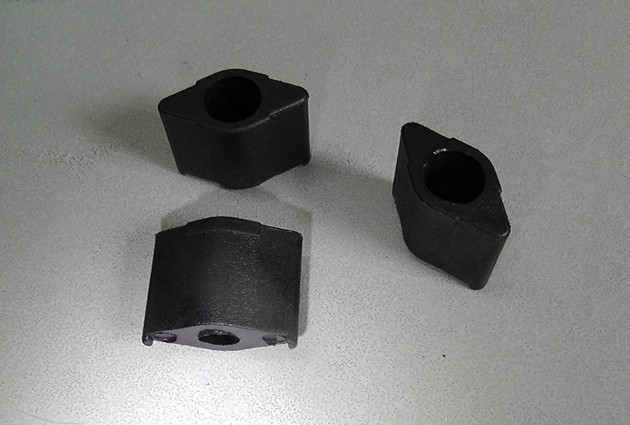

Included items of a set: a screw,a spring ,a sleeve and a plastic part
Type: Double Side Hold downs
Application: Wave solder pallet accessories
Weight of a set: 6g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
I.Features
1)Designed specifically for use in wave solder operations
2)Mostly made from molded plastic part, spring, screws and sleeve.
3)Working temperature: 200degree, max 280degree (10~20s).

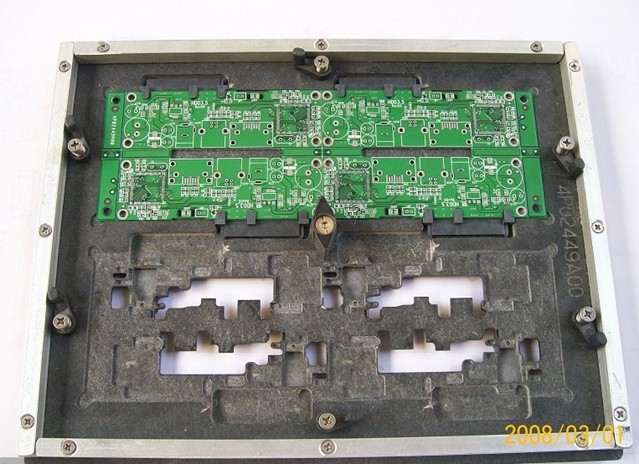

4)The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent solder tin.
II.Function and Application
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
HARDWARE : |
Fixing pre-assembled with, |
IV.Service:
1).Technical Drawing of #9 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
