Model: CATOS-HD-#19
1.Free samples, Technical Drawing available.
2.Hight temperature resistant.
3.Sold pallet hold down
4.Press PCB to avoid from floating and lifting under soldering.
- Product Detail
- Inquiry
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#19
Usage: Postion and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 3 parts

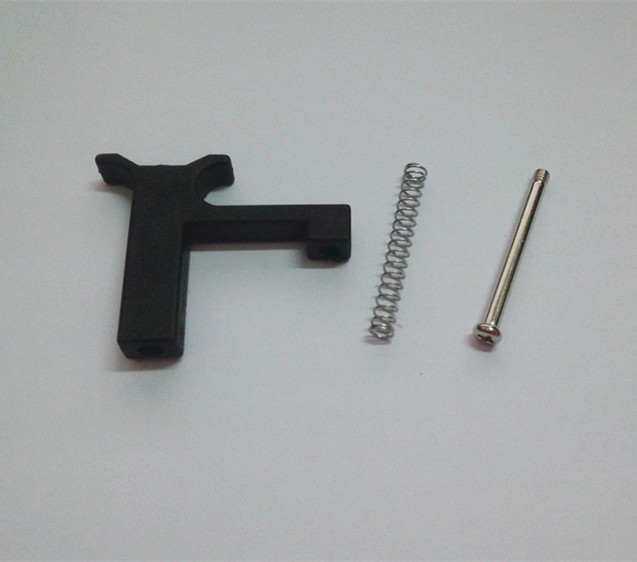

Included items of a set: a screw,a spring , and a plastic part
Type: Press components Hold downs
Application: Wave solder pallet accessories
Weight of a set: 15.7g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
I.Features
1) .Designed specifically for use in wave solder operations
2) .Mostly made from molded plastic part, spring, screws and sleeve
3).Working temperature: 200degree, max 280degree (10~20s).
4).It is fixed on Top Hat.
5).The action is to press PCB components to protect it from floating and lifting under wave solder process so as to create excellent solder tin. And keep no gap between PCB components and PCB board.
II.Function and Application
III.Structure
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
HARDWARE : |
Fixing pre-assembled with, Sleeve, Carbon Steel Spring & screw.
|
IV.Service:
1).Technical Drawing of #19 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
