Model: CATOS-HD-#16NEW
1.Free samples, NO MOQ required.
2.Hight temperature resistant.
3.Sold pallet hold down
4.Press PCB to avoid from floating and lifting under soldering.
- Product Detail
- Inquiry
Current Standard #16 sleeve is iron with electroplate nickel finish treatment .Although iron made electroplate nickel finish .Because iron sleeve material is possible to rusty after connecting water and long-time used.Some clients did not want to use this iron sleeve with finish treatment ,so we recently need design and develop new plastic sleeve to solve the rusty issue.
Sample are free to clients test !
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#16NEW
Usage: Position and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 4 parts
Included items of a set: a screw, a spring ,a sleeve (plastic ) and a plastic part
Type: Press components Hold downs
Application: Wave solder pallet accessories
Weight of a set: 7g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
I. Features
1) .Designed specifically for use in wave solder operations
2) .Mostly made from molded plastic part, spring, screws and sleeve
3).Working temperature: 200degree, max 280degree (10~20s).
4).It is fixed on Top Hat.

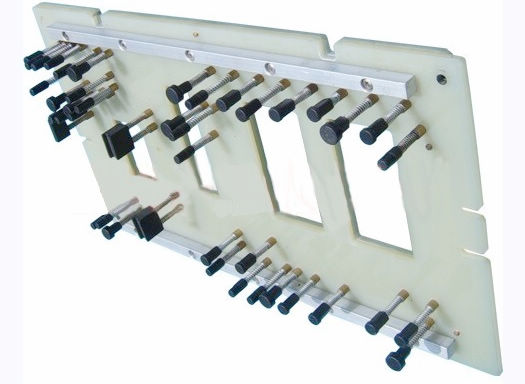

5).The action is to press PCB components to protect it from floating and lifting under wave solder process so as to create excellent solder tin. And keep no gap between PCB components and PCB board.
II.Function and Application
III.Structure
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
HARDWARE : |
Fixing pre-assembled with, Sleeve, Carbon Steel Spring & screw.
|
IV.Service:
1).Technical Drawing of #16NEW holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Notes: solder pallet hold down, fasteners ,pallet hold down, hold down clamps, briquette for pallets, spring clamp, double pipe lifting clamps, down pipe clamp, round spring clamps, lock pcb ,pins,lock cover ,
smt fixture clamps, wave fixture clamps,holder,workboard holder,PCB Hold Down, wave solder pallet part,hold downs ,plungers and clamps,PCB hold downs,Clamps, PCB CLAMP SET,DOT Holddown, Holddown Clamps, Solder Pallet Accessory manufacturer pallets clamps for wave solder;PALLET CLAMP ,Holddowns for Solder Pallet Accessories, DOT Holddowns for Wave Solder Pallet Accessories, Hold Down Clamps,PCB HOLD Down ,side feet holddowns, Hat/Plungers/Holddowns, soldering fixing component pcb fixing (hold down)
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you
