1.Free samples, NO MOQ required
2.Hight temperature resistant.
3.Buckle for top hat fixture
4.Connecting wave solder pallet and top hat.
- Product Detail
- Inquiry
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#25 Dia7.6mm
Usage: Position and Fixed
Material: Plastic ,Iron with electroplated nickel
Structure: Wave Solder Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 2 part
Type: Buckle for top plate and wave solder pallet
Application: Wave solder pallet accessories
Weight of a set: 13g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
I.Features
1) .Designed specifically for use in wave solder operations
2) .Mostly made from molded plastic part, spring
3).Working temperature: 200degree, max 280degree (10~20s).

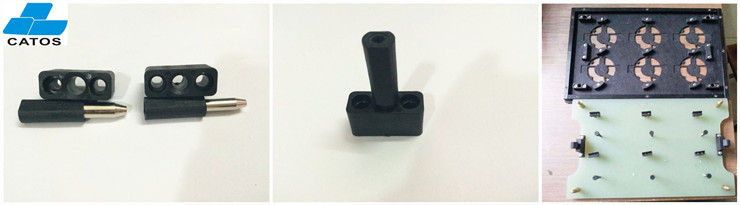

4).It is fixed on Top Hat and wave solder pallets
5). The buckle which positioning wave solder pallets and cover plate fixtures/Top Hat of pressing components .
II.Function and Application
III.Structure
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #25DIA7.6mm holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Notes: solder pallet hold down, fasteners ,pallet hold down, hold down clamps, briquette for pallets, spring clamp, double pipe lifting clamps, down pipe clamp, round spring clamps, lock pcb ,pins,lock cover ,
smt fixture clamps, wave fixture clamps,holder,workboard holder,PCB Hold Down, wave solder pallet part,hold downs ,plungers and clamps,PCB hold downs,Clamps, PCB CLAMP SET,DOT Holddown, Holddown Clamps, Solder Pallet Accessory manufacturer pallets clamps for wave solder;PALLET CLAMP ,Holddowns for Solder Pallet Accessories, DOT Holddowns for Wave Solder Pallet Accessories, Hold Down Clamps,PCB HOLD Down ,side feet holddowns, Hat/Plungers/Holddowns, soldering fixing component pcb fixing (hold down)
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you
